DIY Side Mirror Case removal for LED/Light Change

ok... here you go...

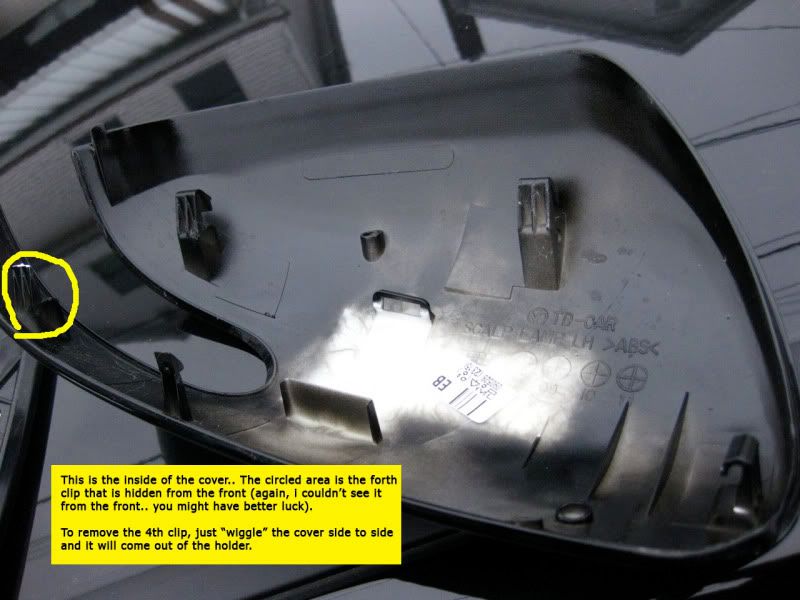

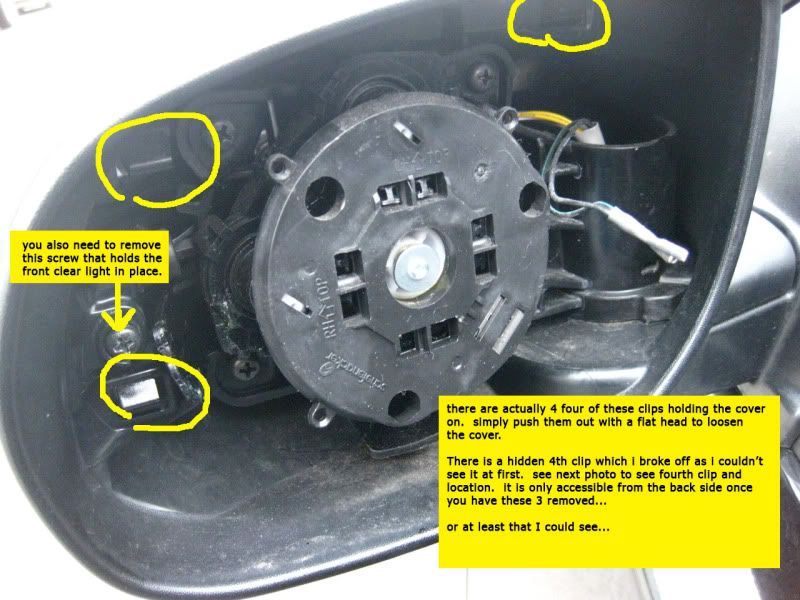

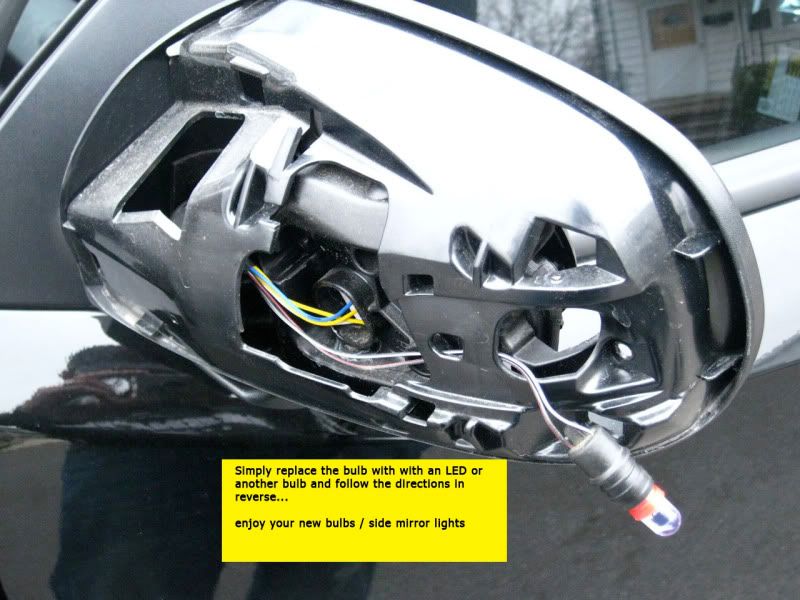

step 1.


Step 2.


Step 3


Step 4


Step 5



Step 6


Step 7



Let me know of any changes and thanks to 1joeyoung for the black on yellow text idea (i stole it from his walk throughs, so easy to read) ... lol... (his walk throughs are nicer, im just lazy!)


·
Registered
Joined
·
696 Posts
Great write-up! Thanks!


·
Registered
Joined
·
407 Posts
Good Job!!! Much better than mine!

Thanks.


·
Registered
Joined
·
407 Posts
Well thank you :)


·
Registered
Joined
·
204 Posts
what type of led goes in the place of the side mirror led
Exterior
Headlight H11b
High-beam/Daytime Running Light H1
Front Turn Signals 2357A
Fog-lights 881
Mirror Turn Signals 168/194/T10
Tail lights 1157
Brake/Rear Signal Lights 1157
Center Mounted Brake Light Factory Assemby
Rear Marker Lights 2357A
Reverse Lights 921
License Plate Lights 168/194/T10


Interior
Map Lights DE3022 (31mm Festoon)
Dome Light DE3022 (31mm Festoon)
Door Courtesy/Safety Light Reflector
Trunk Light DE3022 (31mm Festoon)


·
Premium Member
Joined
·
1,533 Posts
Discussion Starter · #11 ·
buffalo that is an amazing list that I was much in need of. I got my nut. thank you.
if you go to the search area and do a search for bulb or bulb size there is a thread where that info came from and the list gets updated as it's found out etc


·
Registered
Joined
·
204 Posts
Yeah, I don't want to take credit for that list cause I didn't make it. I do have it bookmarked however because it is very useful.


·
Premium Member
Joined
·
1,533 Posts
Discussion Starter · #14 ·
anyone have an idea of where i could find a replacement clear cover for the side mirror led light?
I haven't seen any intge sites I've cruised through. Give the dealer a call. The should be able to order one if they don't have any in stock etc


·
Premium Member
Joined
·
704 Posts

·
Registered
Joined
·
1,315 Posts
Thanks for the picsand write up. I just changed to LEDs as well and yes I broke the same tab as you did even though you warned us. LOL.


·
Premium Member
Joined
·
656 Posts
that's great information. Thanks for sharing it.
This will come in handy for me and many others!
